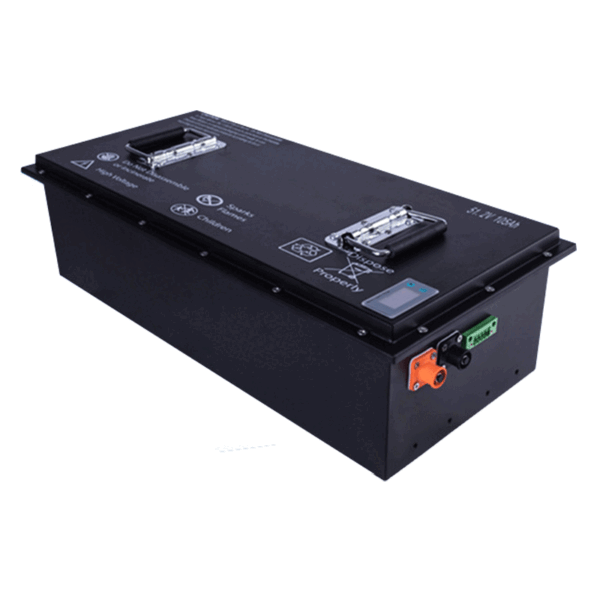

48V 105Ah Golf Carts Lithium Battery

MOQ 10units
Delivery time 20-35 working days
Capacity of supply About 5 million KVAH/year
OEM/ODM Acceptable
Factory Audit Address Dongguan, China
Product Delivery Port Shenzhen, China
Delivery terms EXW, FOB, CIF

Description

This 48V 105Ah golf carts lithium  battery are specially designed for Golf Carts, and the batteries offer Smart BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages, making sure they are constantly at the same voltage level, optimizing battery capacity.



ELECTRICAL SPECIFICATION
Nominal Voltage 51.2V
Nominal Capacity 105AH
Stored Energy 5376Wh
Resistance 30 mΩ
Self Discharge Rate <3% per Month
Maximum Continous Charge Current 100A
Maximum Continous Discharge Current 100A
Charge Cut-off Voltage  40V
Discharge Cut-off Voltage 58.4V
Cycle life(25°C) >4000 times@80%DOD



MECHANICAL SPECIFICATIONS
Dimensions (mm) L809*W351*H190
Weight 51kg
Protection Level IP67
Case Material Commercial Grade Steel
Communication Protocol RS485



TEMPERATURE SPECIFICATIONS
Discharge Temperature -20 to 55°C
Charge Temperature 0 to 50 °C
Storage Temperature -20 to 60 °C



OTHERS SPECIFICATIONS
Short Circuit Protection Automatically recover after removal of short
Life Expectancy (years) 10 years at one cycle per day



The Certification that ELB Got:
ELB Battery certification
ELB Battery certification



Check details in ELB certification center.

FEATURES

The Main features of ELB 48V 105Ah LiFePO4 Golf Cart Battery:



  • 51.2V 105Ah Lithium battery specially designed for Golf carts.



  • Support 1C quick discharge/charge.



  • Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation.



  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety by protecting against over-charging and over-discharging.



  • BMS enhanced design balances the battery cells, optimizing battery performance.



  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining high energy capacity.



  • Faster charging and lower self-discharge.



  • Up to 10 times more cycles than lead acid batteries.



  • Compact and only 40% of the weight of comparable lead acid batteries

FAQs

Q1. Can I have a 48V 105Ah LiFePO4 lithium battery sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit the 48V 105Ah LiFePO4 lithium battery?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the 48V 105Ah LiFePO4 lithium battery and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an 48V 105Ah LiFePO4 lithium battery order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about cycles life of your battery?
All of batteries are 4000 cycles life beyond 80% DOD. 10 years life expectancy at one cycle per day.
