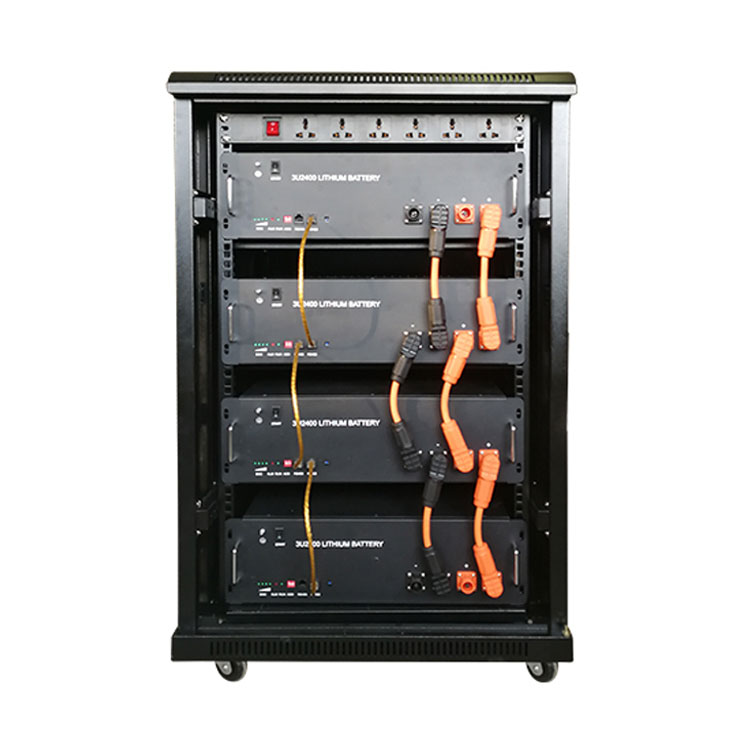

RACK ENERGY STORAGE BATTERY

Rack- energy storage battery
Rack- nergy storage battery
Rack energy storage battery
Previous
Next

According to different requirement of customer, ELB Rack energy storage system are mainly used in off-grid/on-grid energy storage systems for household and commercial use, the modular design can reach from 5KWH to 300KWH. The system has Configured RS485 and RS232 communication port, which can realized remote intelligent monitoring function, you can remotely work through the APP and PC side status, fault information, alarm information.

ISO18001
iso14001
iso9001
CE
UN38.3
IEC
Previous
Next

BATTERY FEATURES

  • ISO9001(Factory)
  • ISO14001(Factory)
  • ISO18001(Factory)
  • MSDS
  • UN3480(Shipping)
  • IEC 62133(Cells)
  • UL 1642(Cells)

INTELLIGENT BMS PROTECTION FUNCTION

OFF GRID OR ON GRID

The batteries can be integrated into public grid. It can also flexibly combined with any sort of energy generator, including photovoltaics, bio energy, wind power and diesel generators. In the case of a power failure, this system is ready to supply power in a split second

Over temperature logo

Over

Temperature

Protection

Over current logo

Over

Current

protection

Over charge logo

Over

Charge

protection

Over discharge logo

Over

Discharge

Protection

Over Load logo

Over

Load

Protection

Balance function logo

Cell

Balance

Protection

Nominal voltage

Nominal Capacity

Stored Energy

Max. Charge current

Max. Discharge current

Communication port

End of Charge voltage

End of disharge voltage

Dimension

(L/W/H)

Approx. Weight

(KG)

Material

Cycle life

(100%DOD)

Cycle life

(80%DOD)

Detail Datasheet

RACK SYSTEM RANGE

51.2V~512V

50Ah~1000Ah

5KWh~500KWh

1C

1C

RS485/RS232/CAN

3.65V per cells

2.5V per cells

Customized

Customized

LiFePO4

3500

6000

Download Datasheet

Energy storage module drawing

PERFORMANCE CHARACTERISTICS

100% DOD Cycle Curves at Different Temperatures

100% DOD Cycle Curves at Different Temperatures

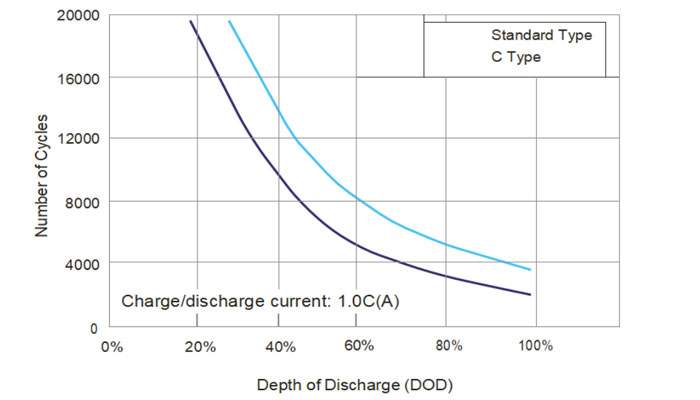

DOD- in Relation to Cycle Life-(25°C)

DOD in Relation to Cycle Life (25°C)

Temperature Effect in Relation to Battery Capacity

Temperature Effect in Relation to Battery Capacity

1C Cycle Curves at Different DOD&Temperatures

1C Cycle Curves at Different DOD&Temperatures

Discharge Time in Relation to Discharge Rate-(25°C)

Discharge Time in Relation to Discharge Rate (25°C)

Discharge Capacity in Relation to Discharge Rate

Discharge Capacity in Relation to Discharge Rate

BATTERY FEATURES

  • Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation.
  • Battery Management System (BMS) controls the parameters of the battery to provide optimum safety by protecting against over-charging and over-discharging.
  • BMS enhanced design balances the battery cells, optimizing battery performance.
  • Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining high energy capacity.
  • Faster charging and lower self-discharge.
  • Up to 10 times more cycles than lead acid batteries.
  • Compact and only 40% of the weight of comparable lead acid batteries

Case Study

Home energy storage system project

Home energy storage

Application: Residential energy storae system

Configuration.: 4*48V100AH LiFePO4 battery

Max charge current current:400A

Max discharge current current:400A

Inverter power :8000W

Cycle lifespan:4000times@80%DOD

48V600ah energy storage system

Home energy storage

Application: Residential energy storage system

Configuration.: 48V600AH LiFePO4 battery RACK system

Max charge current current:600A

Max discharge current current:600A

Inverter power :10000W

Cycle lifespan:4000times@80%DOD

614.4V100AH energy storage system

Supermarket backup system

Application: Energy storage system

Configuration.: 614.4V100AH LiFePO4 battery

Matched Inverter power :30KW

Cycle lifespan:4000times@80%DOD

Location: South Africa

358.4V200AH energy storage system

Health center backup system

Application: Health center Energy storage system

Configuration.: 358.4V200AH LiFePO4 battery

Matched Inverter power :30KW

Cycle lifespan:4000times@80%DOD

Location: Nigeria
