Description

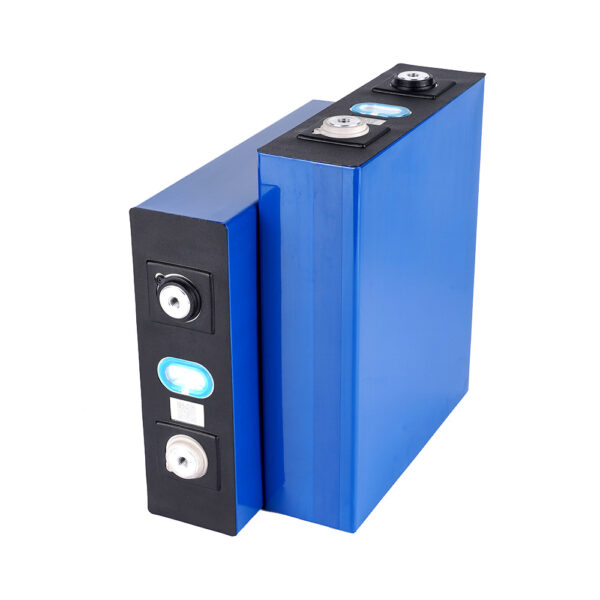

To extremely improve battery performance,ELB adopted precise design and advanced manufacturing techniques to create PC-200 200Ah Battery, which have unique advantage in high energy density, high power density, quick charging performance, long cycle, high and low temperature performance and high safety performance.
Main technical parameter of the ELB PC-200 3.2V 200Ah LiFePO4 Battery Cells:
| Model |
ELB PC-200 |
| General characteristic |
| Material |
LFP |
| Norminal Voltage |
3.2V |
| Norminal capacity |
200Ah |
| Norminal energy |
640WH |
| Dimension(L*W*H, MM) |
200*54*173 |
| Approx.weight |
4.10KG |
| Electrical characteristics |
| End of charge voltage |
3.65V |
| End of discharge voltage |
2.5V |
| Standard charge current |
100A |
| Standard discharge current |
200A |
| Max discharge current |
200A |
| Operating temperature (charge) |
0°C ~ 55°C |
| Operating temperature(discharge） |
-20°C ~ 60°C |
| Storage temperature |
-20°C ~ 55°C |
| Cycle lfe |
>4000 times(25°C@80%DOD,0.2C) |
FEATURES
The Main features of ELB PC-200 200Ah Battery:
- Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion orcombustion due to high impact, over-charging or short circuit situation.
- Allows fast charge and high current discharge. (Support 1C Continuous Discharge.)
- 4000tims cycle life@80%DOD.
- Allows high efficiency charge and discharge cycles.
- Greater energy density than lead-acid batteries.
- Faster charging and lower self-discharge.
The Certification that ELB Got:
- ELB Battery certification
Check details in ELB certification center.
FAQs
Q1. Can I have a sample order about ELB PC-200 200Ah Battery?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit the ELB PC-200 200Ah Battery?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the ELB PC-200 200Ah Battery and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order about ELB PC-200 200Ah Battery?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. How about cycles life of your battery?
All of batteries are 1000 cycles life beyond 80% DOD.
