14430 Battery

ELB 650mAh 14430 battery are design with 14430 standard size, NiCoMn ternary material. minimum weight but highest energy density.

Description

Main technical parameter of the ELB 650mAh 14430 battery:



ELECTRICAL SPECIFICATION
Standard Voltage 3.7V
Nominal Capacity 650mAh
Stored Energy 2.41Wh
Resistance 60 mΩ
Self Discharge Rate <3% per Month
Maximum Continous Charge Current 300mA
Maximum Continous Discharge Current 650mA
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 2.75V
Cycle life(25°C) >1000 times@80%DOD



MECHANICAL SPECIFICATIONS

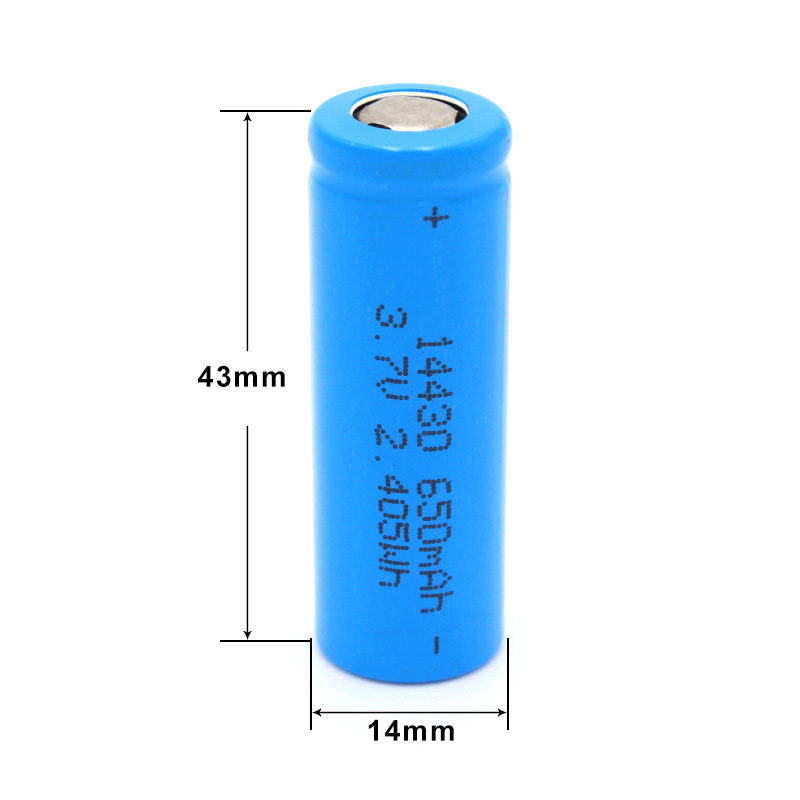

Dimensions (mm) D14×H43
Weight 20g
Terminal Type Flat
Case Material Alloy
Enclosure protection /



TEMPERATURE SPECIFICATIONS
Discharge Temperature 0 to 45°C
Charge Temperature -20 to 55 °C
Storage Temperature -20 to 60 °C



FEATURES

The Main features of ELB ELB 650mAh 14430 batteries:



  • Proven operating wide temperature: -20℃~60℃.



  • Standard 14430 Size.



  • Support 1C Continuous Discharge.



  • 1000tims cycle life@80%DOD.



  • High quality NCM chemistry, which have light weight and large energy density.





The Certification that ELB Got:
ELB Battery certification
ELB Battery certification



Check details in ELB certification center.

FAQs

Q1. Can I have a 650mAh 14430 battery sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit about 650mAh 14430 battery?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the 650mAh 14430 battery and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an 650mAh 14430 battery order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about cycles life of your battery?
All of batteries are 1000 cycles life beyond 80% DOD. 3 years life expectancy at one cycle per day.



Battery knowledge:

How does lithium battery work?

How to extend lithium battery life?

How to connect batteries in series vs parallel?

Lithium Battery Charging: The Definitive Guide

Battery C Rating Explanation And Calculation
