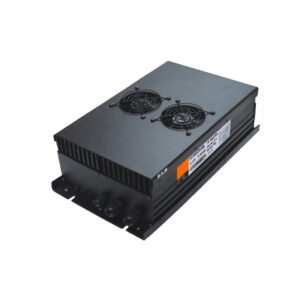

24V 50A Lithium Battery Charger

As more and more customers purchase lithium batteries, there is also a demand for lithium battery chargers. The ELBC series are high-quality lithium battery chargers. Using intelligent three-step charging logic, even the most deeply discharged batteries can be charged. To maximize battery performance and battery life, optimized charging technology enables the maximum possible utilization of the capacity of the battery being charged. Compliant with UL, CE, these LiFEPO4 battery chargers can be used in a variety of applications, from consumer electronics to power batteries and more.

Description

This ELBC-2450 24V 50A lithium battery charger feature an intelligent 3-step charging logic, which can help charge even the deepest of discharged batteries. To maximize battery performance and battery life, the optimized charging technology makes the best possible use of the capacities of the batteries to be charged. With EMC,ROHS,CE compliance, these LiFePO4 battery chargers can be used in a variety of applications ranging from consumer electronics to medical devices.



ELECTRICAL SPECIFICATION
Input voltage 90-130V/185V-245V
Line frequency 47 – 63Hz
Output voltage 29.2Vdc
Ouput Current 50A
Max.output power 1500W
Charge Control (see charger diagram)

Step 0 < 10min (Yellow)

Step 0 > 10min (Red: 4 blinks)

Step 1 (LED 2 : RED)

Step 2 (LED 2 : RED)

Step 3 (LED 2 : Green)

Restart

Low current start-up for: CC 1.6A±0.2A

when batt volt < 20V

Battery voltage too low: 0A / 0V

Charge current: 50A ±0.3A

Charge voltage: 29.2V ± 0.2V

Charge term when current is: < 1.6A

or max. 1 hr.

26.4V

Protection Protected against reversed polarity, short circuit and thermal run-off
Input terminal Customized
Output terminal Customized



MECHANICAL SPECIFICATIONS
Dimensions (mm) L240*W175*H110
Weight 4kg
Cooling method Air cooling
Case Material Aluminum alloy
Enclosure protection IP65



TEMPERATURE SPECIFICATIONS
Operating temperature -10°C to 45°C
Storage Temperature -40 to 75 °C



CHARGER INPUT TERMINAL(OPTIONAL)

Battery charger terminal connector
Battery charger terminal connector

CHARGER OUTPUT TERMINAL(OPTIONAL)

Battery charger terminal connector
Battery charger terminal connector



The Certification that ELB Got:
ELB Battery certification
ELB Battery certification



Check details in ELB certification center.

FEATURES

The Main features of ELBC-2450 24V 50A lithium battery charger :



  • Highly efficient LiFePO4 battery chargers



  • 3-step charge control with current detection



  • Super high-quality components



  • Alligator clip connectors with insulated sleeves



  • Robust design with insulation class II





DIAGRAM OF LITHIUM BATTERY CHARGER

DIAGRAM OF LITHIUM BATTERY CHARGER
DIAGRAM OF LITHIUM BATTERY CHARGER



DOWNLOAD

Datasheet:

ELBC-2450 LiFePO4 battery charger

FAQs

Q1. Can I have a ELBC-2450 24V 50A lithium battery charger sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit the ELBC-2450 24V 50A lithium battery charger ?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the ELBC-2450 24V 50A lithium battery charger and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an ELBC-2450 24V 50A lithium battery charger order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about warranty of your battery charger?
All of lithium battery charger have 2 years warranty.
