Description

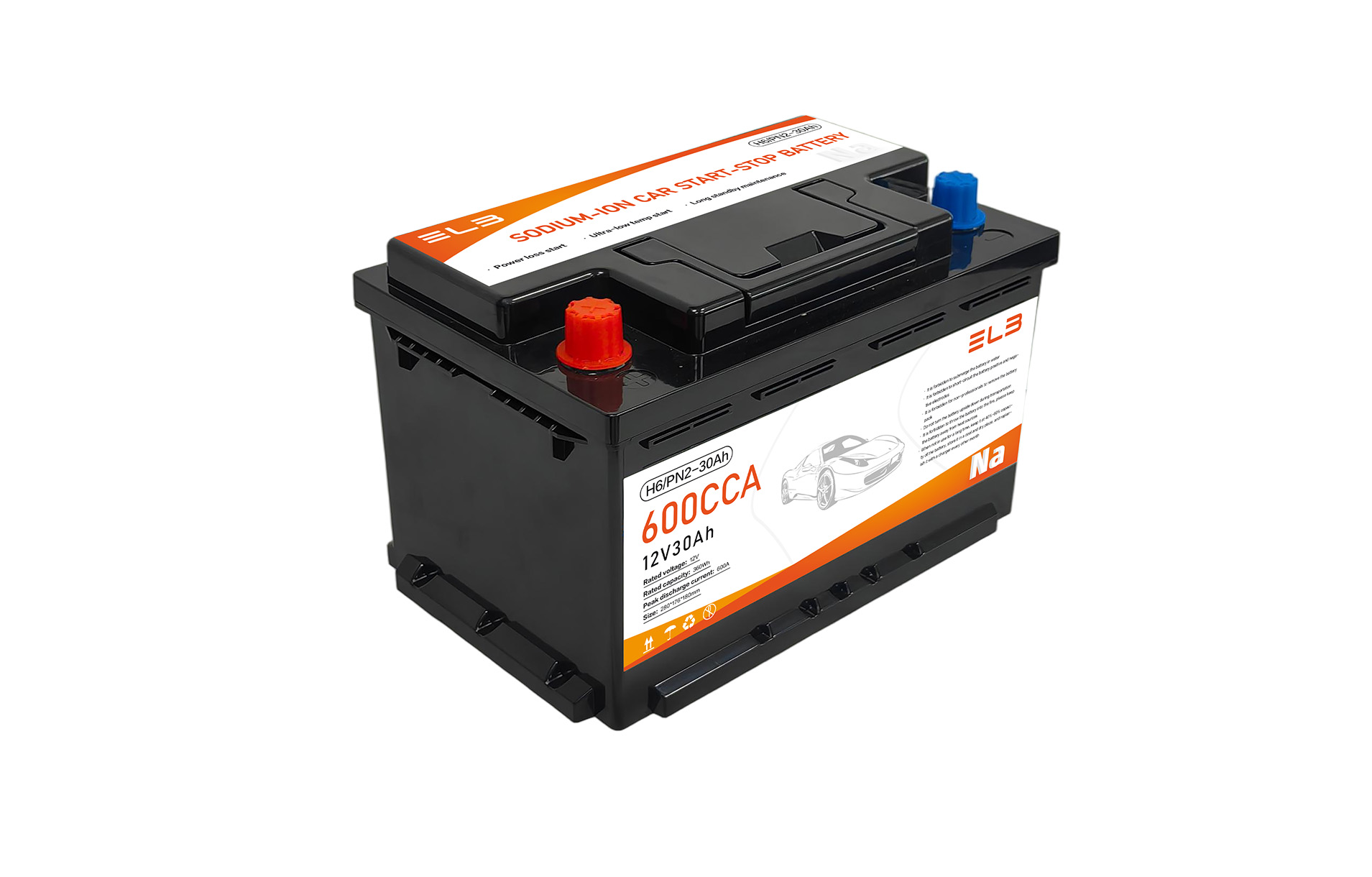

| Model | H6/PN2-30Ah |
| Nominal capacity | 30.0Ah |
| Nominal voltage | 12.0V |
| Nominal energy | 360Wh |
| Peak discharge current/ Starting Current | 600A, 3Sec / 600CCA |
| Discharge cut-off voltage | 8V |
| Standard charge voltage | 15.8V |
| Float charge voltage | 14.6V |
| Standard charge current | 15A |
| Recommended charge current | ≤90A |
| Allowed Max. charge current | 90A |
| Standard discharge current | 30A |
| Recommended discharge current | ≤90A |
| Allowed Max. discharge current | 90A |
| Internal Resistance | ≤4mΩ |
| Weight | Approx. 6.0kg |
| Dimension | L280*W176*H180mm |
| Ex-factory capacity | Approx.50% SOC |
| Cycle life | ≥5000 @ 25℃ 0.5C DOD100% |
| Protection Function | Overvoltage , overcurrent , short circuit, high and low temperature protection and balance function |
| Discharge temperature | -40℃~80℃ |
| Charge temperature | -10℃~55℃ |
| Storage temperature | ≤1Month: -20~+60℃、5~75%RH
≤6Month: -10~+45℃、5~75%RH Recommend environment: 15~+35℃、5~75%RH |
